ZMX124FX USB

12-Channel Mixer with Effects and USB Interface

20 total inputs
3-band EQ with swept mid on microphone channels
4-band fixed EQ on stereo line channels
Stereo 9-band graphic EQ
4 AUX sends per channel: 2 PRE/POST faders switchable
4-bus sub mixer
60mm high precision faders
256 24-bit Alesis DSP effects (16 presets Ã— 16 variations)
USB audio interface for computer software recording and monitoring

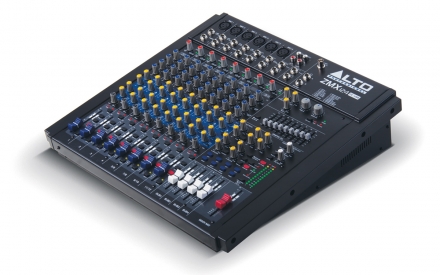

Angle

Top

Back

View Larger

Find a Dealer

Professional Live Mixing, Effects, and USB Audio in One Mixer

Full-featured Professional Live Mixing Experience
The ZEPHYR ZMX124FX USB is a 12-channel, 4-bus mixer with more than enough inputs, outputs, routing, EQ, and effects, for nearly any live performance reinforcement need. It features 6 ultra-low microphone inputs with balanced TRS jacks and insert points, a three-band EQ with a sweepable mid frequency on 4 channels, four channels of stereo inputs with 4-band fixed EQs, and a 4-bus assignable sub mixer. You also get 60mm high-precision faders and four AUX sends per channel (2 Pre/Post switchable pots). The ZMX124FX USB gives you the all the features you need to mix any professional live performance.

256 Onboard Alesis Effects
Whether you're mixing the church choir or a heavy metal band, give your mix a professional edge with 256 onboard 24-bit Alesis DSP effects. Choose from room and space delays, small and large hall acoustics, plate and spring reverbs, flangers, choruses and more. The ZMX124FX USB offers 16 variations of 16 professional effects from which to build, tweak, and dial in your sound.

USB Audio Interface
Capture your live mix with your laptop and computer recording software by simply connecting a USB cable to the ZMX124FX USB. This USB-enabled professional mixing console features a USB port that streams two channels of 24-bit audio out to your computer (Main Mix or Sub Mix 1/2). With the ZMX124FX USB you can record band rehearsals, club gigs, speaking engagements, worship meetings, and any other live performance reinforcement situation. What's more, this USB connection is bi-directional so you can also stream audio from your laptop to the ZMX124FX USB for audio and music playback!

High headroom, low noise
With the ZMX124FX USB we took a no-compromise approach where the purity of your mix is concerned. This compact mixer brings a standard of quality to your performances that you expect to find in mixers costing twice as much. All Alto Professional ZEPHYR ZMX mixers are designed with high headroom and ultra low-noise, discrete mic preamps so you always get the full dynamic range of your mix every time.

Visualize your mix
We designed every ZEPHYR ZMX mixer with your performance in mind. Sometimes venues are dark and it can be hard to see what you're working with. Alto Professional solves this problem by not only color coding each section of the mixer, but also by using brightly colored knobs so that you can easily find what you need to adjust before you ever lay a finger on the mixer. Our blue, red, yellow and white pots are instantly easy to identify in dim lighting. LED indicators for output level, peak, and phantom power also assist in making sure that you have multiple visual cues that compliment everything you're hearing.

TECH INFORMATION

Input Channels

Microphone Input Electronically Balanced

Frequency Response: 20 Hz to 20 kHz, +/-1 dB

Distortion: ( THD&N) ＜0.03% at 0 dBu, 1 kHz

Gain range: 0 dB to 50 dB (Mic)

SNR (Signal-to-Noise Ratio): 114 dB

Line Input Electronically Balanced (Unbalanced)

Frequency Response: 20 Hz to 20 kHz, +/-1 dB

Distortion: (THD&N) ＜0.03% at 0 dBu, 1 kHz

Gain range: -15 dBu to 35 dBu

Impedance Microphone Input: 1.4 kOhms

Channel Insert return: 2.5 kOhms

All Other Input: 10 kOhms or greater

Tape Out: 1 kOhms

All Other Outputs: 120 Ohms

Equalization
Hi Shelving: ±15 dB @12 kHz

Mid bell: ±12 dB @ 100 Hz - 8 kHz

Low shelving: ±15 dB @80 Hz

MAIN EQ: 9 EQ (63 Hz, 125 Hz, 250 Hz, 500 Hz ,1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz) ±15 dB

DSP Section: 24-bit A/D and D/A converters

DSP Resolution: 24-bit

Type of effects: Large Hall, Medium Hall, Large Room, Medium Room, Karaoke, Short Spring Reverb, Long Spring Reverb, Chamber, Mono Delay, Mono Echo, Stereo Echo, Flanger, Chorus, Reverb + Chorus, Reverb + Delay, Thickener

Presets: 16

Controls: 16-Posistion preset selector

Clip LED

Mute switch with peak LED Indicator

Main Mix Section Noise (Bus noise)
Fader 0 dB, Channels muted: -94 dBu

Fader 0 dB, All input channels assigned and set to unity gain: -92 dBu

Phantom Power: Mic Pin 2 / Pin 3 and Pin 1 +48 V - Switched

Power supply main voltage: 100 V - 230 V

Dimensions (WxLxH): 415mm x 400mm x 115mm
Weight: 12.8 lb
