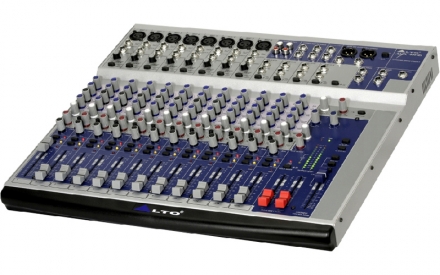

22-Channel 2 + 2-Bus Mixing Console
Angle

Angle



Find a Dealer

Share


TECH INFORMATION

  • 8 mono inputs with gold plated XLR and balanced TRS jack with low cut filter @75Hz - 18dB / Oct.
  • TRIM and +48V Phantom Power for mono / mic inputs
  • 4 stereo inputs with balanced TRS jack with level select switches
  • 3 - band EQ with sweepable MID on mono inputs
  • 4 - band fixed EQ on stereo inputs
  • 2 AUX sends: AUX 1 with PRE - / POST - FADER switch for monitoring - AUX 2 POST - FADER for effects sends can be changed in PRE - FADER for monitoring
  • Each input channel features MUTE / ALT3 - 4, SOLO switches and LEDs & OVERLOAD LED
  • 2 Stereo AUX return with level and routing to AUX 1
  • 2 - track IN / OUT wit h discrete switches for routing to Control Room and to Main Mix
  • Two different ways of SOLO PFL (Pre-fade listen) AFL (After-fade listen) for a better control over signal path
  • Matrix (MAIN MIX / 1-2 / 3-4) & discrete output level for Phones / Control Room
  • Balanced XLR & TRS jack output
  • Dimensions (WxDxH): 427 x 412 x 35 / 48mm (16.8" x 16.2" x 1.4/1.9")
  • Weight: 5.9kg (13.0 lb)
