Angle
Front
Back

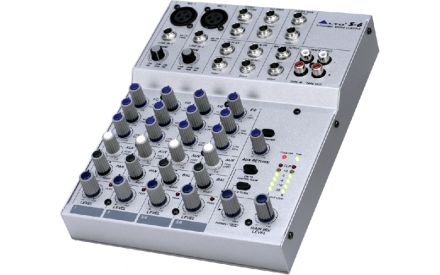

Our international best-seller! The compact ▲LTO S-series mixers offer unequalled value in every aspect. They sound fantastic and feature excellent ergonomics for easy, accurate use in demanding situations. All the exceptional reliability that has helped establish ▲LTO's reputation for excellence around the World.
TECH INFORMATION
- Balanced inputs for clean, hum - free performance
- Extremely low noise preamps
- 48 Volt Phantom Power
- High headroom for wide dynamic range
- 2 - Track inputs assignable to main mix, control room & headphone outputs
- Sealed potentiometers
- Built - in power transformer (Except S-6)
- Inserts on mic channels
- 2 mono inputs with gold plated XLR and balanced TRS jack
- TRIM and +48V Phantom Power for mono inputs
- 2 stereo inputs with balanced TRS jack
- Peak LED in each channel
- Very effective 3 - band EQ
- 1 POSTFADER AUX send for effects and send can be changed in PRE - FADER for monitoring
- Stereo AUX return with level
- 2 - track IN / OUT with discrete switches for routing to Control Room and / or to Main Mix
- Discrete output level for Phones / Control Room
- Balanced TRS jack output
- Dimensions (WxDxH): 171 x 224 x 34 / 40mm (6.7" x 8.8" x 1.3/1.6")
- Weight: 1.3kg (2.9 lb)
