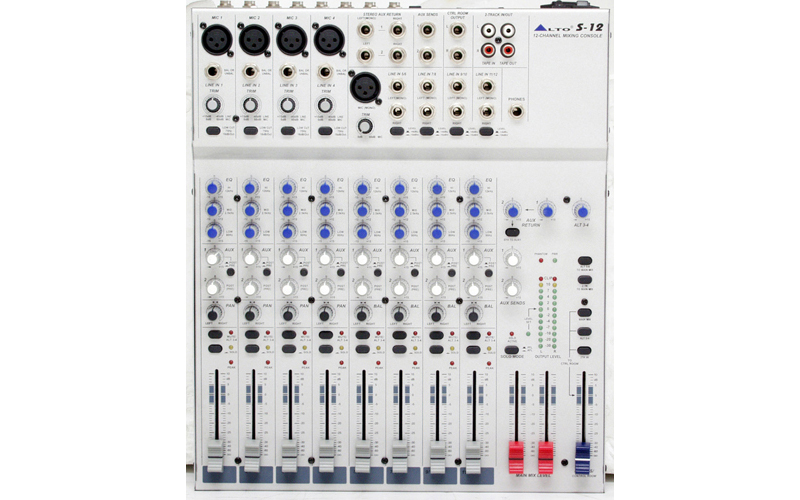

Front
Back
Our international best-seller! The compact ▲LTO S-series mixers offer unequalled value in every aspect. They sound fantastic and feature excellent ergonomics for easy, accurate use in demanding situations. All the exceptional reliability that has helped establish ▲LTO's reputation for excellence around the World.
TECH INFORMATION
- Balanced inputs for clean, hum - free performance
- Extremely low noise preamps
- 48 Volt Phantom Power
- High headroom for wide dynamic range
- 2 - Track inputs assignable to main mix, control room & headphone outputs
- Sealed potentiometers
- Built - in power transformer (Except S-6)
- Inserts on mic channels
- 4 mono inputs with gold plated XLR and balanced TRS jacks with low cut filter @75Hz - 18dB / Oct.
- TRIM and +48V Phantom Power for mono / mic inputs
- 4 stereo inputs with balanced TRS jack with level select switches
- Very effective 3 - band EQ
- 2 AUX sends: AUX 1 with PRE - / POST - FADER switch for monitoring / effects AUX 2 POST - FADER for effects send can be changed in PRE - FADER for monitoring
- Each input channel features MUTE / ALT3 - 4, SOLO switches, LEDs & clip indicating LED
- MASTER SECTION FEATURES
- 2 Stereo AUX return with level and routing to AUX 1
- 2 - track IN / OUT with discrete switch for routing to Control Room and to Main Mix
- Two different ways of SOLO PFL (Pre-fade listen) AFL (After-fade listen) for a better control over signal path
- Matrix (MAIN MIX / 1-2 / 3-4) & discrete output level for Phones / Control Room
- Balanced XLR & TRS jack output
- Dimensions (WxDxH): 300 x 355 x 28 / 80mm (11.8" x 14.0" x 1.1/3.2")
- Weight: 4.0kg (8.8 lb)
