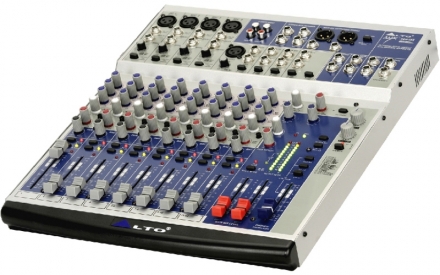

Angle
TECH INFORMATION
- 4 mono inputs with gold plated XLR and balanced TRS jack with low cut filter @75Hz - 18dB / Oct.
- TRIM and 48V Phantom Power for mono / mic inputs
- 4 stereo inputs with balanced TRS jack with level select switches input 5 has a mic input too
- 3 - band EQ
- 2 AUX sends: AUX 1 with PRE / POST - FADER switch for monitoring - AUX 2 POST - FADER for effects sends can be changed in PRE - FADER for monitoring
- Each input channel features MUTE / ALT3 - 4, SOLO switches and LEDs & OVERLOAD LED
- 2 Stereo AUX return with level and routing to AUX 1
- 2 - track IN / OUT with discrete switches for routing to Control Room and to Main Mix
- Two different ways of SOLO PFL (Pre-fade listen) AFL (After-fade listen) for a better control over signal path
- Matrix (MAIN MIX / 1-2 / 3-4) & discrete output level or Phones / Control Room
- Balanced XLR & TRS jack output
- Dimensions (WxDxH): 409 x 330 x 35 / 45mm (16.1" x 13" x 1.4/1.8")
- Weight: 3.8kg (8.4 lb)
