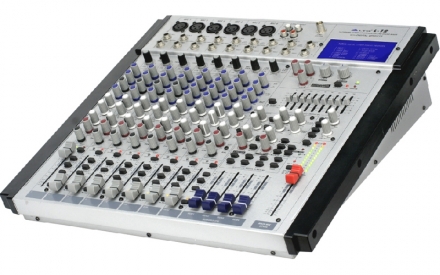

Angle
Back
TECH INFORMATION
- 4 mono inputs with gold plated XLR and balanced TRS jack
- Each input channel features MUTE, SOLO, SIGNAL & OVERLOAD LEDs
- 6 mic inputs with TRIM, 48V Phantom and low - cut filter @75Hz - 18dB / Oct
- 4 stereo inputs with balanced TRS jack with level select switches input 5 and 6 also have mic inputs
- 3 - band EQ with sweepable MID on mono inputs
- 4 - band fixed EQ on stereo inputs
- 4 AUX sends AUX sends 1 & 2 switchable PRE - POST - FADER (for monitoring/effects sends purposes) - AUX sends 3 & 4 POST - FADER (for internal DSP FX and/or external FX unit)
- Master AUX sends with level and SOLO switch
- 4 stereo AUX Returns with smart signal routing system for higher versatility
- 24 - bit internal DSP with 256 effects, 16 presets by 16 variations with DSP MUTE switch and Peak LED and with discrete levels for AUX 1 & AUX 2 monitoring
- Main Out features a switchable 9 - band graphic EQ
- Channel Inserts and Direct Out in each mono input
- 2 - track IN / OUT with discrete switches for routing to Control Room and / or to Main Mix
- Two different ways of SOLO PFL (Pre-fade listen) AFL (After-fade listen) for a better control over signal
- Matrix (MAIN MIX / 1-2 / 3-4) & discrete output level for Phones & Control Room
- Main Mix inserts for flexible connection to outboard equipment
- Balanced XLR & TRS jack output
- Dimensions (WxDxH): 415 x 400 x 38 / 115mm (16.3" x 15.7" x 1.5/4.5")
- Weight: 6.7kg (14.8 lb)
