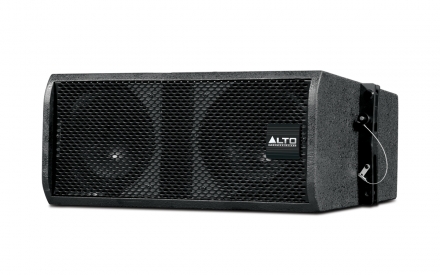

SXA28P

Professional 2-way Line Array Loudspeaker

1600 Watts peak power rating
Dual 8â€ LF drivers
Dual 1â€ HF drivers
Quick and easy to set up for a wide variety of configurations
Optimized for short or medium-throw, indoors or out
Maximum SPL @ 1m: 125dB Peak (Passive Mode)
Ideal for fixed installations or rentals

Front

Back

Angle

View Larger

Find a Dealer

Compact Industrial-Grade Stage Sound

BIG SOUND, BIG VALUE
The SXA28p is a two-way line array loudspeaker capable of handling the most demanding performances with clarity thanks to its dual 8-inch low/mid drivers and dual 1-inch high frequency drivers. When combined with the Alto Professional SXA18p 18-inch vented subwoofer, these powerhouse loudspeakers are engineered to deliver a nearly limitless array of configuration options, allowing you to easily incorporate up to four SXA28p drivers as needed for a variety of environments. The SXA28p is also built to endure the rigors of the road night after night, while maintaining a sound that is loud, clean and uncolored.

As part of Alto Professional's TOURMAX ARRAY series, the SXA28p loudspeakers and SXA18p subwoofer system are optimized for short or medium-throw, can be to installed in an indoor or outdoor space as stereo system, mono center, or as delay tower. This makes the SX28p loudspeaker part of the most remarkable value in component speaker arrays in the industry.

BRING ON THE POWER
With the ability to handle 400 watts Continuous, 800 watts Program or 1600 watts Peak, the SXA28p is ideal for high-powered amps and offers clean, uncolored sound for any venue. Capable of delivering 125 dB Peak SPL, the SXA28p packs serious performance. No matter how big or small the gig may be, the SXA28p can handle the job and produce incredible sonic clarity.

BUILT FOR THE RIGORS OF THE STAGE
Frequent travel or reconfiguration can take a toll on any stage gear. Fortunately, the SXA28p is built for whatever your gigs brings. It has a rugged cabinet made of 18mm calibrated plywood that is ready for the constant abuse that touring systems endure on a daily basis. The sleek black finish and perforated metal grill make sure the SXA28p array is heard, not seen, so audiences stay focused on the performance. Whether on stage, on the road or in a house of worship, the SXA28p delivers flexible, powerful sound for a remarkable value. The SXA28p also combines quick set up with a coverage of 7.5° Vertical and 100° Horizontal and a maximum tilt capability of +20°/0°/-20°.

Suggested configurations include 2 × SXA18P subwoofers usable from 37Hz to 180Hz, plus 4 × SXA28P speakers usable from 77Hz to 18kHz and one STAGEDRIVE+ Digital Processor that includes factory presets and user memory for custom presets.

Applications

Live sound systems
Touring rigs
Installations
Arenas and stadiums
Houses of worship

TECH INFORMATION

Operating Frequency Range (-10 dB): 65 Hz - 20 kHz
Frequency Response (-3 dB): 77 Hz - 18 kHz
Maximum SPL @ 1m: 125 dB Peak (Passive Mode), 122 dB SPL Continuous (Passive Mode)
Power Rating (Passive): AES Standard

1600 W peak / 800 W program / 400 W cont.
Bi-amp low: 1600 W peak / 800 W program / 400 W cont.
Bi-amp high: 300 W peak / 150 W program / 75 W cont.

Coverage Horizontal: 100° nominal
Coverage Vertical: 7.5° per enclosure
Transducers (LF): 2 × 8” Mid-Bass, 2” high-power voice coil, ferrite magnet, weather resistant cone. Impedance 16Ω each.
Transducers (HF): 2 × 1.4” Titanium diaphragm, neodymium magnet, 1” exit Impedance 16Ω
Crossover Modes: Passive or Bi-Amp with High frequency external level selector, used or Far-field (-3 dB) or Near-field (0 dB)
System Sensitivity (1 W @ 1 m):

97 dB SPL (passive)
Bi-Amp Low 97 dB (2 device parallel)
Bi-Amp High 107 dB (2 device parallel)

Nominal Impedance:

Passive 8Ω
Bi-Amp Low 8Ω (2 device parallel)
Bi-Amp High 8Ω (2 device parallel)

Suspension/Mounting: Integrated hardware for suspension in Line Array, dual 36 mm diameter pole socket, two handles
Input Connectors: Two Speakon N-L 4 type

Dimensions (WxLxH): 10.7in x 24.4in x 16.7in
Weight: 48.1 lb
