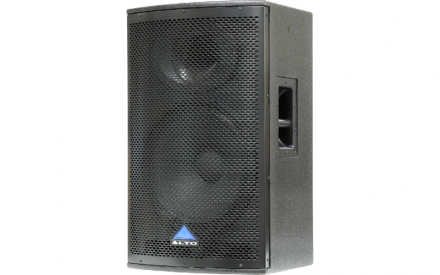

Angle
TECH INFORMATION
- Power System: 420W Bi-Amp (350W-LOW/65W-HIGH) in EIAJ Standard
- Maximum SPL @ 1m: 123dB SPL
- Frequency Response: MODELLER presets setting
- Protection Low-High: Analog Limiter
- Input Impedance : 30kΩ Balanced/15kΩ Unbalanced
- Input Sensitivity : Line: Å{4dB
- Low Frequency Device : 15" woofer/2.5" voice coil
- High Frequency Device : 1" Neodymium Driver/1" voice coil
- Coverage (H×V) : 90° H × 60° V Elliptical Wave Guide
- Connectors : Input with Combo/Link with XLR
- Cabinet : Trapezoidal Shape/Composite wood/Metal Handle/Black Paint finishing
- External Control: MODELLER with 16 Preset/Line Volume/Clipping LED Indicator/Ground Switch
- Dimensions (H×W×D): 750 × 450 × 420mm (29.5" × 17.7" × 16.5")
- Weight: 27kg (59.5 lb)
