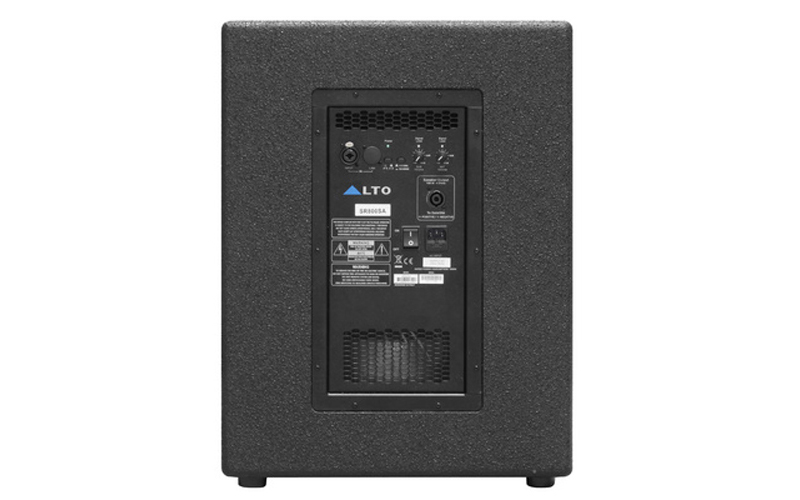

Back
TECH INFORMATION
- Power System: 2 x 500W CLASS AB in EIAJ / 2 x 400W CLASS AB in Continuous
- Frequency Response : 42Hz-125Hz (-10dB)
- Maximum SPL @ 1m: 122dB Continuous / 125dB Peak (Calculated)
- Transducer Low: 15" Woofer, 3" High Power voice coil
- Active Crossover: HPF 80Hz under analog processor Input / Output: LINE-COMBO/LINK-XLR-M, OUT SAT with SPK NL-4
- Input Level: Line 0dBu: Line 0dBu
- External Control: Volume SUB / Volume SAT / Phase NORMAL-REVERSE / Power ON with Green LED / Clip Limiter with Red LED / Ground Lift
- Power Supply: 120-240 Volt, in Switching Power mode.
- Enclosure Construction: 18mm multi-layer Plywood , glued and reinforced, black-scratch resistant paint, metal grille and rubber footer foot, four optional wheel
- Mounting: One standard metal pole-mount , plus one metal handle.
- Dimensions (HxWxD):591x 451 x 554mm (23.3" x 17.8" x 21.8")
- Net Weight:39.8 kg / 87.7 lbs
- Shipping Weight: 43.4 kg / 95.6 lbs
