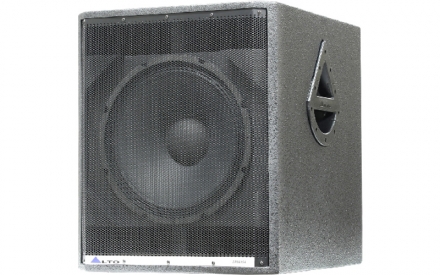

Angle
Our top-end speaker enclosures featuring premium quality transducers, painted plywood and fly points. The SR enclosures include a powerful 40 Bit processor, the same as that equips our renewed MAXIDRIVE processors. This processor includes noise-gate, hum cancel, multiband dynamic processor, every order and every type of Xover and 20 parametric filters. We have also included a 16-position selector with different sound presets so that you can taste the flexibility of our 40 bit digital processor. Amp power: IF 233W(8Ω), 378W(4Ω) Class H
TECH INFORMATION
- Inputs: Mic/Line (Combo connector)
- Controls: Mic Volume, Main Volume, Alto
- 16-preset digital processor Ground Switch
- Protections: DSP limiter/compressor
- Low-RMS Output Power : 233W @8Ω, 378W @4Ω Class H
- System Peak Power: 1000W Peak
- Maximum SPL @ 1m: 124dB SPL calculated
- Frequency Response (Å|10dB) : 45Hz-20kHz
- Impedance Low-High: Low 4Ω
- Crossover Frequency: 16 selectable Crossover
- Protection Low-High: DSP Lim/Comp.
- Low Frequency Device : 15"/385mm-3" voice coil
- Input Impedance : 30kΩ Balanced/15Ω Unbalanced
- Connectors : Input/Output with XLR
- Plywood Cabinet : 18mm Multilayer Plywood
- Hardware Suspension: No suspension point
- External Control: Line Volume-Encoder with 16 preset-Clipping LED indicator-Ground Switch
- Dimensions (H×W×D): 598 × 500 × 600mm (23.5" × 19.7" × 23.6")
- Weight: 42.6kg (93.9 lb)
